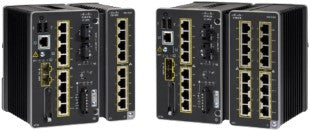

Cisco IEM-3400-8P

Cisco IEM-3400-8P Ethernet Expansion Module

The Cisco Catalyst IE3400 IEM-3400-8P is a powerful expansion module designed to elevate your network's capabilities.

With eight Gigabit Ethernet ports supporting PoE+, this module is ideal for powering and connecting devices like IP cameras, wireless access points, and VoIP phones in various settings.

Key Features

• High-Performance Gigabit Ethernet: 8 Gigabit Ethernet ports ensure fast and reliable data transfer.
• PoE+ (Power Over Ethernet): Simplifies device deployment by combining power and data over a single Ethernet cable.
• Compact & Rugged Design: DIN-rail mountable and industrial-grade build for harsh environments.
• Advanced Security: Features like ACLs, port security, and 802.1X authentication safeguard your network.
• Flexible Management: Intuitive web-based interface, CLI, and SNMP support for streamlined network monitoring.
• Scalability: Expand your network with ease using stackable switches and additional modules.

Technical Specifications

• Ports: 8 x Gigabit Ethernet (PoE+)
• Form Factor: DIN-rail mountable
• Connectivity Technology: Wired Ethernet
• Cabling Type: Ethernet 1000Base-T
• Data Link Protocol: Gigabit Ethernet
• Capacity:
  • 1000 IGMP groups
  • 256 VLAN IDs
  • 128 Spanning Tree Protocol instances
  • 1500 ACL entries
• MAC Address Table Size: 8000 entries
• Network/Transport Protocols: TCP/IP, UDP/IP, NTP, ARP, FTP, BOOTP, DHCP, HTTP
• Remote Management Protocols: SNMP (v1/v2/v3), HTTP, TFTP, SSH, SCP, NETCONF, RESTCONF, NTP, ICMP, DHCP, RSTP, YANG, TACACS+, RADIUS
• Memory:
  • RAM: 4 GB
  • Flash: 1.5 GB
  • Supported Memory Cards: SD Memory Card
• Interfaces: 8 x 1000Base-T (PoE+) - RJ-45
• Voltage Required: DC 9.6–60 V
• Power Consumption (Operational): 23 W
• Dimensions: 2.4 in x 5.3 in x 6 in
• Weight: 31.99 oz
